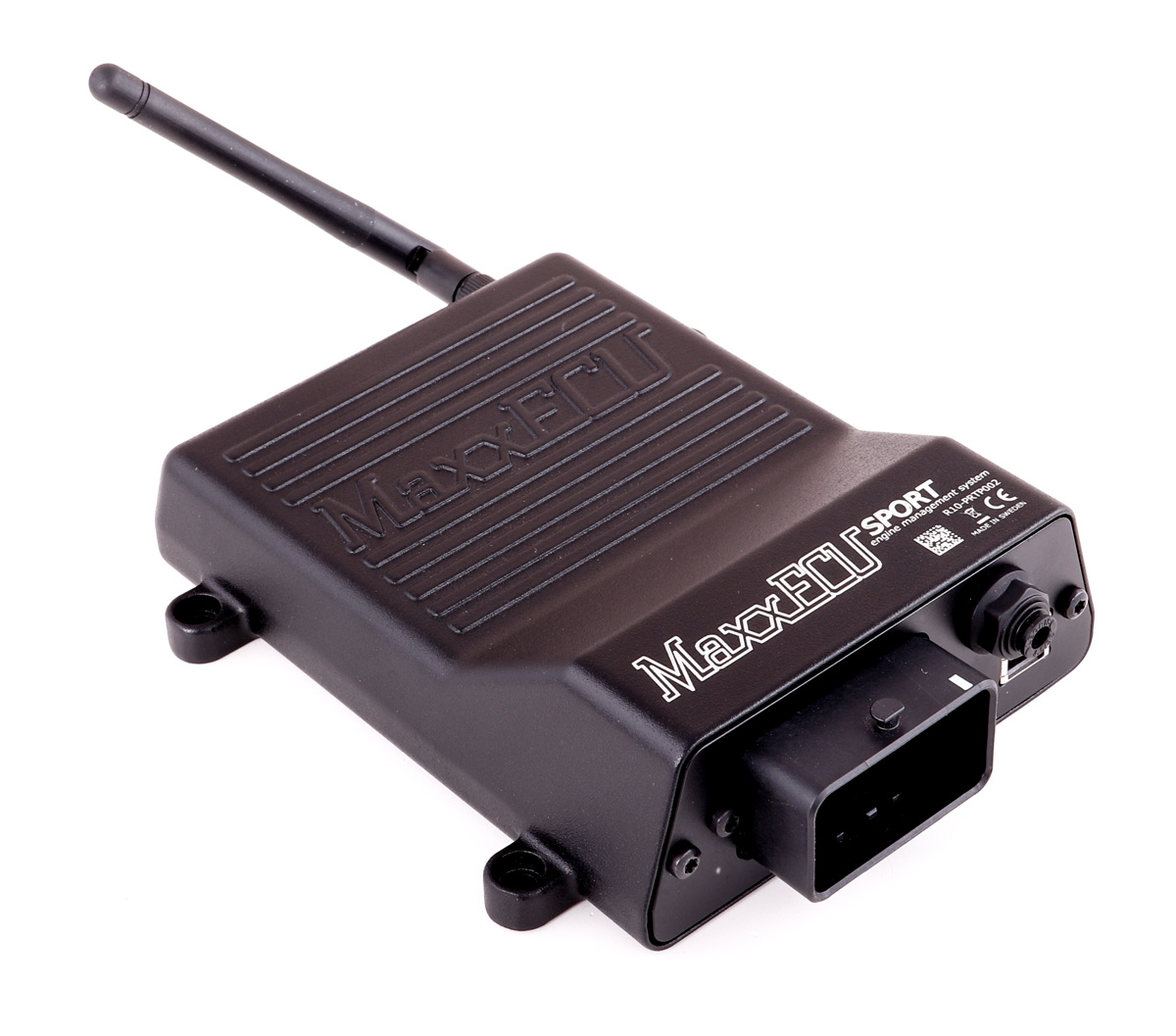

Extremely versatile engine control system for powerful engines with up to 6 sequential cylinders. Up to 12 cylinders in wasted spark. Faster and easier tuning with built-in wideband lambda and a built-in MAP-sensor up to 3 bar / 43.5 psi of boost. Get into the advanced tuning with functions such as built-in E-throttle with a superfast Cortex M3 CPU and Bluetooth connectivity. Extremely versatile engine control system for powerful engines with up to 6 sequential cylinders. Up to 12 cylinders in wasted spark. Faster and easier tuning with built-in wideband lambda and a built-in MAP-sensor up to 3 bar / 43.5 psi of boost. Get into the advanced tuning with functions such as built-in E-throttle with a superfast Cortex M3 CPU and Bluetooth connectivity. Kit completes with ECU, Harness, Accessories and LSU Wideband Sensor. MaxxECU SPORT Features Selected features E-Throttle Built-in wideband lambda Traction control Anti-lag Shift-cut and launch Variable valve control Flex fuel CAN bus Internal loggings 6 injector output (high/low impedance) 6 ignition outputs 7 extra (GND) outputs 2 extra outputs for E-Throttle 6 extra analog inputs Bluetooth Target engines of MaxxECU SPORT All 3-12 cylinder engines (4-stroke) Up to 6 cylinders fully sequentially Up to 12 cylinders in wasted spark MaxxECU SPORT inputs Intake air temperature sensor (IAT) Coolant temperature sensor (CLT) Throttle position sensor (TPS) Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference 2 extra temperature sensors. Can be used as switches or to control additional functions 6 extra 0-5V inputs. Can be used for additional sensors such as measurement oil/fuel pressure 2 digital inputs used for example for speed sensors (Hall) or switches Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost MaxxECU SPORT outputs 6 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils 7 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-5 (2A), GPO 8 (5A), GPO 9 (2A) 2 extra motor outputs (e.g E-Throttle). GPO 11,12 (2A) MaxxECU SPORT technical CAN bus for expansion modules, OEM vehicle CAN, ODBII USB communication for tuning with MTune Bluetooth for connecting to mobile devices with MDash 8MB memory for internal logging, up to 1000Hz Supply voltage 8-22V ARM Cortex-M3 120MHz main processor Resolution on ignition: 0.1 degrees Resolution on injectors: 0.001 ms Updates the fuel and ignition calculations 2000 times per second The fastest PC communication on the market Weight: 590g 140x134x42mm (including mounting points, excluding connector) Aluminum Casing MTune Tuning Features 2D and 3D Shortcuts for most operations Interpolation Local autotune Live-logger Superfast USB connection Live tuning – No need to burn changes – instant save MaxxECU Engine Protections EGT fuel correction Lean power cut EGT power cut Rev limit Advanced warning and protection system Lambda fuel correction MaxxECU Auto Transmission Support 4L80E/4L85E 4L60E/4L65E MaxxECU Functionality Launch control (up to three stages) Rolling launch Anti-lag using solenoid or E-Throttle Traction control Power management Shift-cut Overrun fuel cut Lambda control (closed loop) Nitrous control AC control Boost control (closed/open loop), extra compensation tables. Boost level switching E-Throttle support VANOS/VVTi support Logging: Internal up to 1000Hz, PC logging 20Hz Built-in error diagnostics and handling Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing Closed-loop anti-stall Ignition timing lock for easy synchronization with timing light Flex-fuel MaxxECU Advanced Features Speed limiters Individual fuel correction per cylinder Injector staging Virtual fuel tank/fuel consumption Filters on TPS, RPM and MAP signals Trailing ignition Virtual inputs/internal outputs to activate internal functions Use of TYPE-K sensor to report IAT up to 350 degrees C/660 F Wastegate control with CO2 for a predictable boost Extra user table activation based on user-defined settings After launch power limit, function to control traction after launch CAN inputs (advanced) – Receive CAN data from external electronics and use in MaxxECU, such as OEM vehicle buttons. Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.) Timers and distance counters CAN for OEM protocols, OBDII, and CAN modules Clutch slip control with user-defined tables (as an example) Measure injector resistance directly from the software Built-in trigger oscilloscope Built-in trigger logger Flexible load/speed axis selection Flexible user output functions Flexible user PWM/FREQ output functions Speedometer output function Tachometer output selectable 5/12V, supports external flyback coil Sequential gearbox control MaxxECU Online Help – Click Here
