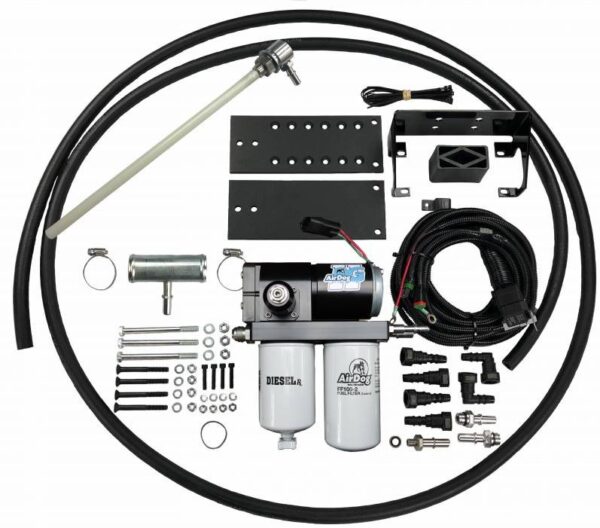

AirDog II-5G DF-165-5G 1989-1993 Dodge Cummins A7SABD540
This is the AirDog II-5G DF-165-5G fuel system for the 1989-1993 Dodge Ram 12V VE-44 5.9L Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2″ bulkhead fitting. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing and factory mechanical fuel pump. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.
Hazardous Materials
Class 3: Flammable Substances
Flammable Storage Cabinet Features
- 100Lt Cabinet Code SC100
- 2 doors, 1 shelf
- Under bench storage
- viventura patented automated/sequential closing and self-locking mechanisms – unique with only one moving part
- Double walled thermal barrier
- Alloy contact points – no spark risk
- Corner underside levelling bolts
- For added protection, additional undercoat etch is used before high gloss powder coat finish
- Key lock door handles and three-point latch locking
- Doors open 180 degrees for easy shelf removal
- Optional earthing point and cable provided
- Dual side vents
- Adjustable shelf height
- Built to comply with Australian Standards 1940
- Weight 100kg
- External measurements H800 x W1100 x D500
