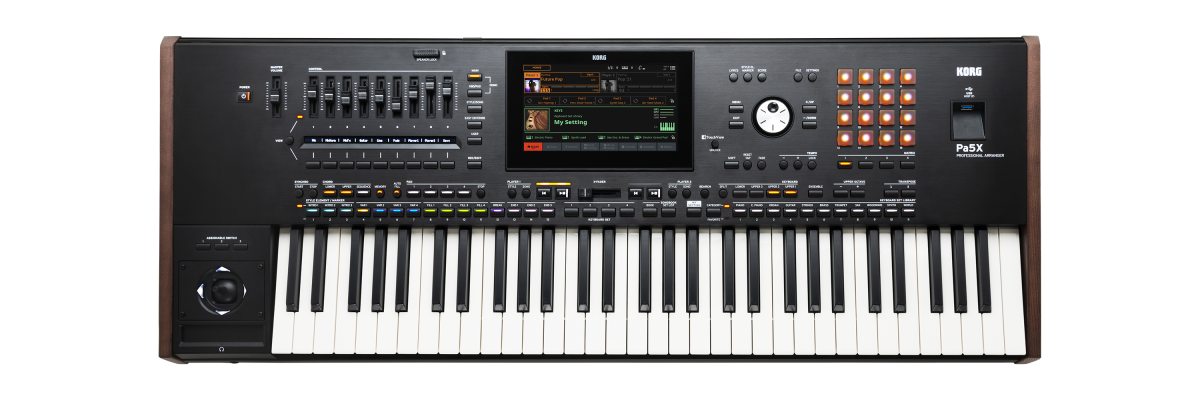

KORG PA5X PROFESSIONAL ARRANGER (61 KEYS)

Keyboard Pa5X 61: 61 keys (C2 – C7) Semi–weighted keys with Aftertouch Pa5X 76: 76 keys (E1 – G7) Semi–weighted keys with Aftertouch Pa5X 88: 88 keys (A0 – C8) Hammer action with Aftertouch Case Aluminum case with wooden side panels Operating System Upgradable Operating System Sound Generator EDS-XP (Enhanced Definition Synthesis-Expanded) Multimode filters with resonance, 3-band EQ for each track Polyphony 160 Voices, 160 Oscillators Effects Keyboard Tracks: 3 Insert Effect; 3 Master Effects Style/Song: 10 Insert Effects; 3 Master Effects Master EQ and Finalizer for Songs and Styles Final Mastering Effects: Waves MaxxAudio® Mic Processor Technology by Shift Audio Mic Setup: Compressor, EQ, Gate Four-part Harmonizer, Doubler, Filter, Modulation, Delay, Reverb, AutoPitch Guitar Processor Guitar rack (4 effect-slots) with stompbox and amp simulation Sounds / Drum Kits Factory: More than 2,200 Factory Sounds Five multilayer Stereo Acoustic Pianos with Damper/Body Resonance, GM/XG Sound Sets, more than 130 Drum Kits including Ambient Drums and Round Robin-based Drum Kits User Area: 768 Sounds, 384 Drum Kits Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator Natural Ambience Drum Sounds, Round Robin features Defined Nuance Control (DNC) Technology Quick and Full Sound Editing, Drum Family and Full Drum Kit Editing Sampling User PCM Sample memory: 4 GB of data, equivalent to 8 GB linear when compressed Loads KORG, WAV, AIFF and SoundFont™ formats Saves KORG, WAV and AIFF formats Full Edit, Time Slice, Sampling features Keyboard Sets Factory: More than 500 Factory Keyboard Sets, freely programmable Combines four Keyboard Sounds, plus Effects and settings Library accessible from front-panel buttons “My Setting” special Keyboard Set Players Patented XDS Crossfade Dual Player with X-Fader Balance control Crossfading between Songs and/or Styles Styles Factory: More than 600 Factory Styles, freely programmable Eight Style Tracks, 4 Keyboard Sets and 4 Pads per Style; Programmable Sounds, Effects and Style parameters Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table) Style Record and Event Edit Style Elements: 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings Style Controls: Play/Stop, Synchro Start, Synchro Stop, Tap Tempo/Reset, Auto Fill, Memory, Bass Inversion, Manual Bass, Bass & Lower Backing, Drum & Bass, Individual Style Tracks Mute, Style to Keyboard Set Set Chord Sequencer Factory: More than 200 Chord Sequences Chord Sequence Recorder/Player Chord Sequences can be saved to Style and SongBook Entries Songs Patented XDS Crossfade Dual Player with X-Fader Balance control Supported formats: MID, KAR, MP3 Lyrics, MP3 G Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor Markers with Add, Delete, Edit, Loop and AutoScroll functions Jukebox function Full-featured, 16-track Sequencer, Song Edit MP3 Player / Recorder Double MP3 Player and MP3 Recorder Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, Effects Transpose ( 6/-5 semitones), Tempo Change (±30%) Vocal Remover SongBook Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with Artist and Genre tags Filtering and sorting options User definable Set Lists Compatibility Legacy Pa-Series models: Styles, Keyboard Sets (Performances), Sounds (Programs), Songs, Pads Pads Factory: More than 400 Pads Four Assignable Pads Stop Buttons Pad Record function Control Section 9 Assignable Sliders, 9 Assignable Buttons, Strip Display; 4 Preset 1 User settings Matrix Section 16 Matrix Pads, 4 Preset buttons Style/Song Controls Play/Stop, Go To Start, Style Select, Song Select, Xfader, Tempo /-, Tempo Lock, Tap Tempo/Reset, Synchro Start, Synchro Stop, Fade In/Out, Chord Scan (Lower, Upper), Chord Sequence, Memory, AutoFill General Controls Master Volume, Octave Transpose, Master Transpose, Dial, Up/ , Down/-, Joystick (Pitch Modulation), Ribbon, 3 Assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit Scale Controls On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch Control Inputs Damper Pedal; supports half-pedaling with the optional KORG DS-1H pedal 2 Assignable Pedal/Footswitch Audio Inputs Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced) Guitar: Mono with Gain control (1/4″ jack, unbalanced) Line 1: Left/Right (1/4″ jacks, balanced) Line 2: Stereo (1/8″ mini-jack, unbalanced) Audio Outputs Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4″ jacks, balanced) Headphones (1/4″ jack) Video Output HDMI connector      MIDI IN, OUT, THRU standard MIDI connectors USB to MIDI, through the USB Device port 16 User-definable MIDI Presets USB Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear Type B (Device 2.0, for personal computers and tablets): 1 rear Storage Internal Drive: 1 GB Micro SD Card (not included): Rear-panel slot with plastic cover USB Flash Drive (not included): Can be connected to the USB Host ports Display 8” Wide capacitive color TouchView™ TFT display, 800 x 480 resolution Clock Internal System Clock Power Consumption 100-240 Volts, 50/60 Hz < 0.2 Watt in standby / 20 Watt normal / 45 Watt with PaAS installed Dimensions (W x D x H) (without music stand, display fully lowered) Pa5X-88: 1,262.0 x 396.4 x 146.0 mm / 49.68” x 15.60” x 5.74” Pa5X-76: 1,233.1 x 374.3 x 126.8 mm / 48.54” x 14.73” x 4.99” Pa5X-61: 1,021.1 x 374.3 x 126.8 mm / 40.20” x 14.73” x 4.99” PaAS (optional): 980 x 180 x 140 mm / 38.58” x 7.08” x 5.51” Weight Pa5X-88: 20.1 kg / 44.31 lbs Pa5X-76: 17.4 kg / 38.36 lbs Pa5X-61: 15.1 kg / 33.29 lbs PaAS (optional): 5.70 kg / 12.56 lbs Accessories AC Power Cable, Music Stand, Quick Guide manual Options PaAS Amplification System ST-SV1-BK Keyboard Stand EXP-2 Foot Controller XVP-20 Expression/Volume Pedal DS-1H Damper Pedal (supports half-pedaling) PS-1 Pedal Switch PS-3 Pedal Switch VOX V860 Volume Pedal
