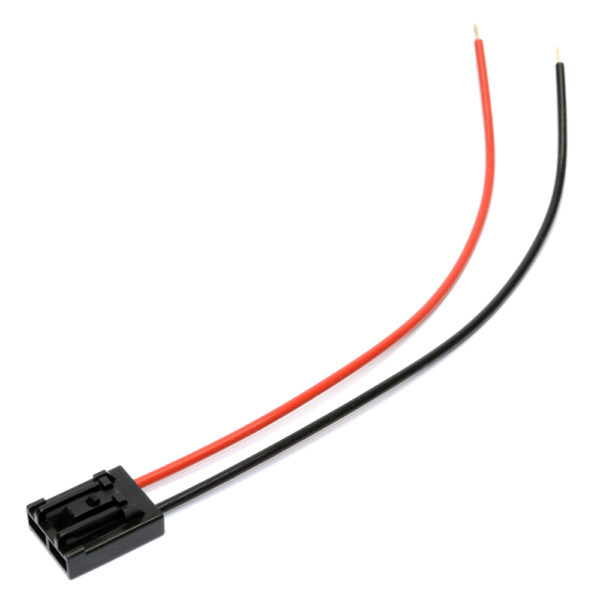

16401 – Electrical Connector, 340 Series, Fly Lead
Check polarity on the pump, the red lead goes to positive connection on fuel pump look for the sign on the top of the pump. Make sure all connections are insulated well and are tight. Make sure the connector is clipped into place on the top of the pump to avoid disconnection.
Hazardous Materials
Class 3: Flammable Substances
Flammable Storage Cabinet Features
- 100Lt Cabinet Code SC100
- 2 doors, 1 shelf
- Under bench storage
- viventura patented automated/sequential closing and self-locking mechanisms – unique with only one moving part
- Double walled thermal barrier
- Alloy contact points – no spark risk
- Corner underside levelling bolts
- For added protection, additional undercoat etch is used before high gloss powder coat finish
- Key lock door handles and three-point latch locking
- Doors open 180 degrees for easy shelf removal
- Optional earthing point and cable provided
- Dual side vents
- Adjustable shelf height
- Built to comply with Australian Standards 1940
- Weight 100kg
- External measurements H800 x W1100 x D500
