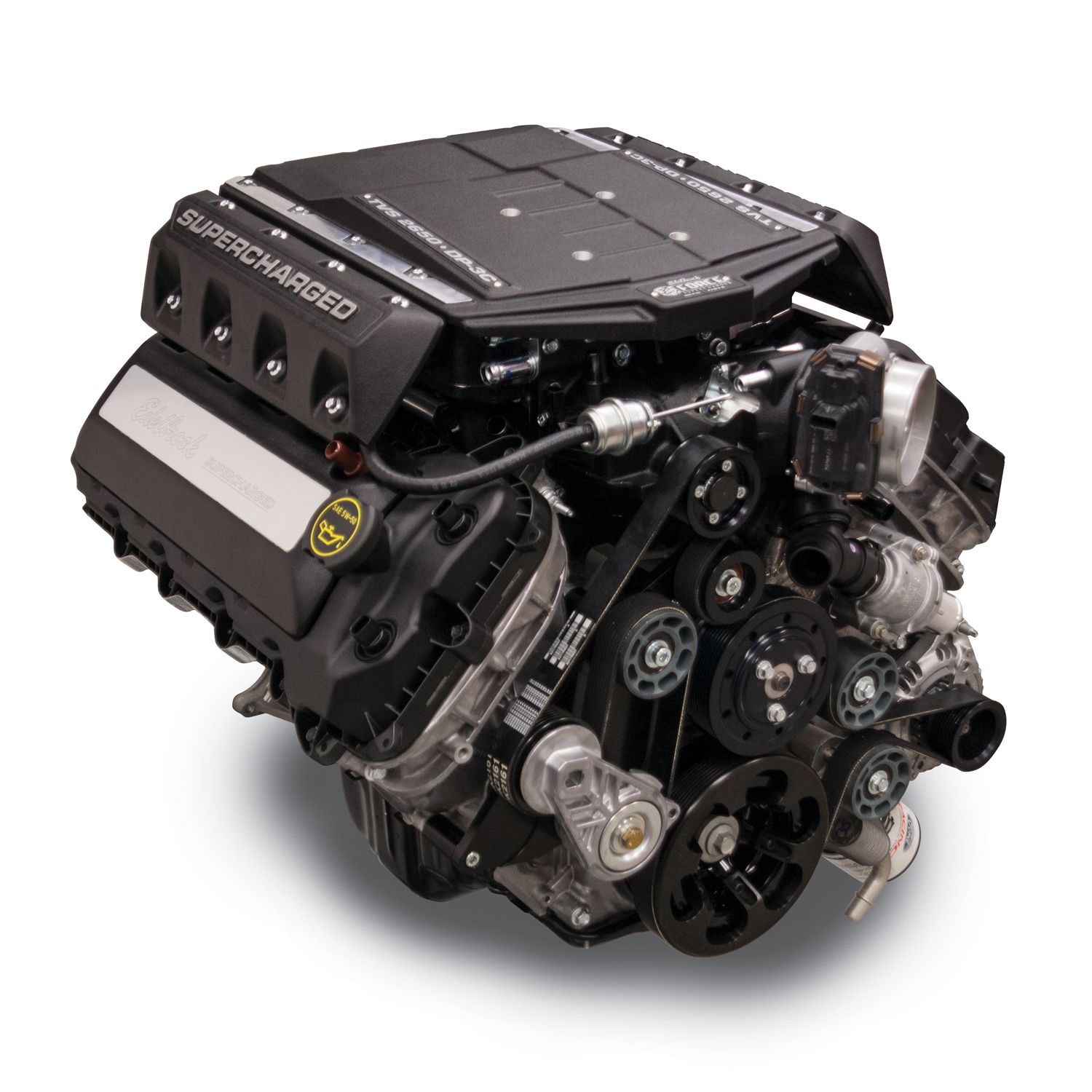

(Special Order) Edelbrock supercharged 5.0L Ford Coyote crate engine part #46890 produced 785 hp and 660 ft-lbs. of torque (with 93 octane fuel) at the flywheel. The core of this engine is a brand new Ford lightweight aluminum block with forged and balanced crankshaft, forged Manley H-Beam connecting rods and Mahle forged aluminum pistons. Sitting on top is an Edelbrock supercharger with Eaton TVS R2650 rotors. Also included are the essential supercharger kit components, such as the 8 rib drive belt, electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, coils, mass air flow sensor (MAFS) housing and re-usable air filter. Includes all front end drive accessories: water pump, alternator, idlers, tensioners, belts and hardware. Pair with universal heat exchangers for a complete installation. Engine Specifications: Finish: Black powder coated; Displacement: 5.0L (302 c.i.d.); Horsepower: 785 hp; Torque: 660 ft-lbs.; Compression: 9.5:1; Block: Ford Aluminum; Crankshaft: Forged; Pistons: Mahle Forged Aluminum; Rods: Manley Forged H-Bea; Camshafts: Stock Ford; Rocker Arms: Stock Ford 2-1 Ratio; Induction: Supercharger System; Cylinder Heads: Stock Four-Valve Aluminum w/ Boss 302 valve springs; Warranty: 2-year / Unlimited mileage SPECS Manufacturer Edelbrock Application Application Specific UPC 00085347468904 Quantity Sold Individually Wiring Harness Included Yes Main Bearing Cap Bolt Quantity 4-Bolt Availability Note Built to Order Warranty 24 Months Horsepower 785 HP Type Ford Coyote Camshaft Type 243deg/254deg, .660/.651, 114 LSA Rocker Arm Type Ford OEM Outside Pulley Diameter 3.00 in Carburetor Type Not Included Rocker Arm Ratio 2:1 Induction Type Supercharged Spark Plugs Included Yes Intake Manifold Type EFI Oil Filter Included Yes Rear Main Seal Type 1-Piece Hardware Included Yes Plug Wire And Boot Included Yes Compression Ratio 9.5:1 Construction Type Assembled Flywheel Included No Cylinder Head Type Ford Racing Piston Type Forged Aluminum Timing Cover Included Yes Cylinder Head Material Aluminum Valve Cover Included No Harmonic Balancer Included Yes Crankshaft Material Forged Steel Air Cleaner Type Not Included Distributor Included No Throttle Body Included Yes Displacement 302 cid Oil Pan Included Yes Water Pump Included Yes, Standard Engine Block Material Cast Iron Torque 660 ft-lb Rotor Type Eaton TVS 2650, Black Powder Coated Calibration Yes Alternator Included Yes ECU Included Yes Idler Pulley Included Yes Emissions Code   Hazardous Materials Warning WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. Installation Notes Crate engine #46890 includes a supercharger, wiring harness, pre-programmed ECU, electronic throttle pedal, oxygen sensors, MAFS, OBD-II diagnostic port, air filter, fuse box, water pump, hose, alternator, belts, idlers and hardware. This engine will require an EFI compatible fuel delivery system with a minimum flow of 90 gph at 70 PSI. Fuel pressure regulator with boost reference is required. Top of supercharger measures 20.83in from crank centerline. Supplied with Edelbrock Break-In Oil. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming. Pulley Belt Width 8-Rib Universal Or Specific Fit Specific Fit
