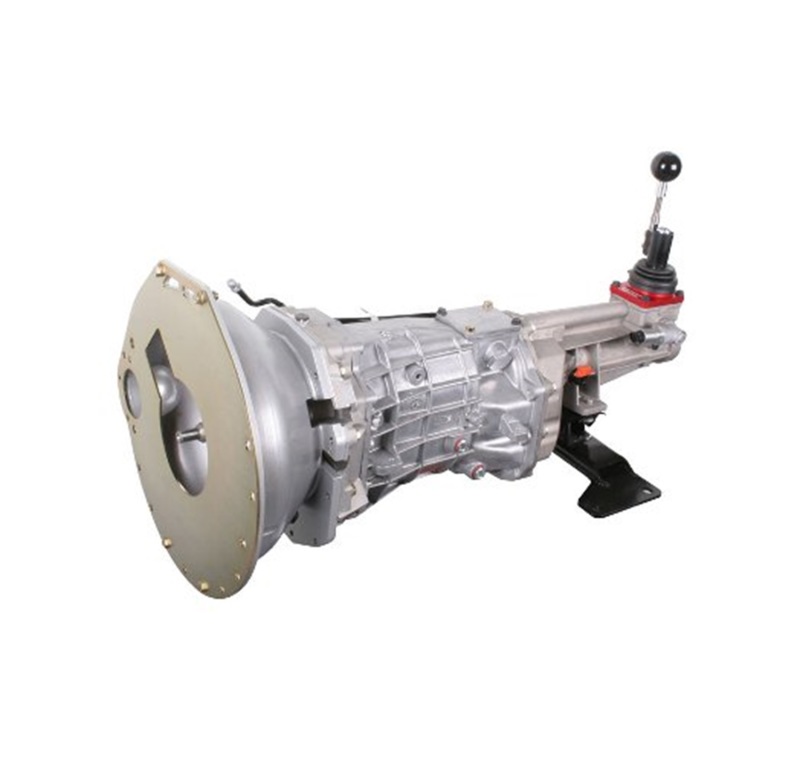

Ford Racing T56 Magnum XL

Fits: 2005-2014 Mustang GT  2.97 Gear Ratio Trans mount isolated shifter and shift ball 700 lb-ft torque capacity  New extended length tail section designed to eliminate the semi-remote shifter SFI-approved steel bellhousing   Reuses the OEM hydraulic clutch relase system.  Includes swap-specific steel crossmember and OE-quality rubber transmission mount,  NOTES: Users will need to convert to a 26-spline clutch disc and 1-piece 31 spline slip yoke style prop shaft (not included).  Magnum XL transmissions are designed to accept the factory hydraulic release bearing from a 2005-current Mustang GT.   GT500 bearings may also be used but will require a custom adaptor to maintain proper stack up (not included).  2005-2010 Mustang applications are a direct plug-and-play with regards to the speedometer.   2011-2014 models will require speedometer recalibration via ECU tuning or a separate plug-in signal converter from sine to hall-efffect signal, such as the Abbott Enterprises ERA or Dakota Digital SGI-1  (Not included) 2015-2019 model installation kits are not currently available from Ford Racing.
Category:

Hazardous Materials
Class 3: Flammable Substances

Flammable Storage Cabinet Features

  • 100Lt Cabinet Code SC100
  • 2 doors, 1 shelf
  • Under bench storage
  • viventura patented automated/sequential closing and self-locking mechanisms – unique with only one moving part
  • Double walled thermal barrier
  • Alloy contact points – no spark risk
  • Corner underside levelling bolts
  • For added protection, additional undercoat etch is used before high gloss powder coat finish
  • Key lock door handles and three-point latch locking
  • Doors open 180 degrees for easy shelf removal
  • Optional earthing point and cable provided
  • Dual side vents
  • Adjustable shelf height
  • Built to comply with Australian Standards 1940
  • Weight 100kg
  • External measurements H800 x W1100 x D500
