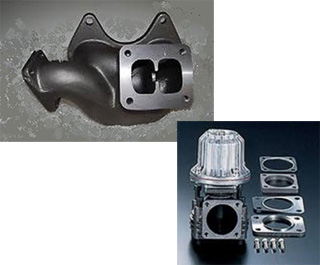

The casting manifold and wastegate from FD3S performance tuning standard HKS Full Turbine Kit are available again. Installation size is the same as the conventional to compatible with the existing full turbine kit. This is not just a reproduction; the port shape of the exhaust manifold internal was significantly reviewed to improve the exhaust air flow to the wastegate. The exhaust pressure reduction stabilizes the boost pressure even using with new GTIII turbines. Redesigning the casting material by the latest technology improves the high temperature durability. The wastegate is affordable and highly-reputed existing Special Wastegate. Using with the pipes self-fabricated for the turbine increase the fun of the large capacity turbine performance. E/G：13B-REW Bridge Port GTIII-4R A/R1.00 (Proto Type) New Casting Exhaust Manifold SPL WASTEGATE ●GTIII-4R TURBINE MOdel GTIII-4R Wastegate External Code No. 14001-AK033 Horsepower (kW) 368-537 Exhaust Housing Inlet Flange TO4 2port Outlet Flange Coupling 99.1 A/R 0.81 Turbine Wheel Outer Dia. (mm) 74.0 Compressor Wheel Trim 53 Outer Dia. (mm) 85.0 Compressor Housing Inlet Dia. (mm) φ100 Outer Dia. (mm) φ70
