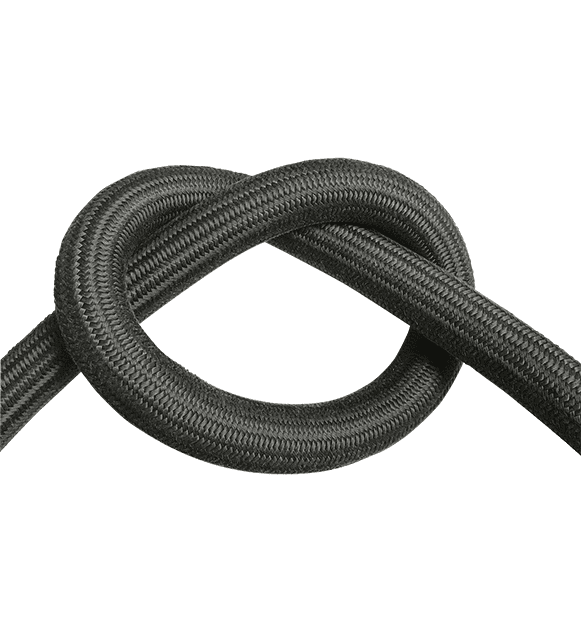

Part Numbers & Sizes Desc. SIZE Hose I.D. Bulk Per Ft. 3 Ft. Roll 6 Ft. Roll 10 Ft. Roll 15 Ft. Roll 20 Ft. Roll -6 .375″ 2710006 2710306 2710606 2711006 2711506 2712006 -8 .500″ 2710008 2710308 2710608 2711008 2711508 2712008 -10 .625″ 2710010 2710310 2710610 2711010 2711510 2712010 -12 .750″ 2710012 2710312 2710612 2711012 2711512 2712012 -16 1.00″ 2710016 2710316 2710616 2711016 2711516 2712016 Technical Specifications Part No. AN Size Working Pressure Vacuum Rating Min. Bend Radius Weight Per Ft. 2700006 -6 800 psi. 28 in. hg. 1″ 0.08 lbs 2700008 -8 600 psi. 28 in. hg. 1.5″ 0.12 lbs 2700010 -10 500 psi. 28 in. hg. 1.75″ 0.17 lbs 2700012 -12 420 psi. 28 in. hg. 2.25″ 0.21 lbs 2700016 -16 400 psi. 28 in. hg. 3″ 0.33 lbs FRAGOLA’s PREMIER HOSE: Our Race-Rite & Race-Rite Pro Hose features an enlarged inner diameter with a smoothbore conductive P.T.F.E. core that utilizes a convoluted exterior and black Aramid braid cover. Making it compatible with all fluids, capable of tight bend radiuses, and higher flow rates.   RACE-RITE PRO HOSE- ENGINEERED TO DOMINATE OIL COOLER & DRY SUMP SYSTEM MARKETS Convoluted exterior with added Spiral Wire increases hoop strength to prevent hose sucking shut under high vacuum. Spiral wire provides an even better bend radius. 50% lighter than our 8400 Series Black Nylon Race Hose Features a true to size I.D. for improved flow rate. Works with all fluids, including Ethanol type fuels, ATF, Coolant, & Oils. Ideal in Dry Sump or High Vacuum Applications. Use with our Race-Rite Crimp-on Hose Ends. Operating range -65°-500°F Additional Information Fluid Type Alcohol Diesel E85 Engine coolant Engine oil Ethanol Gasoline Methanol Transmission fluid Vacuum
