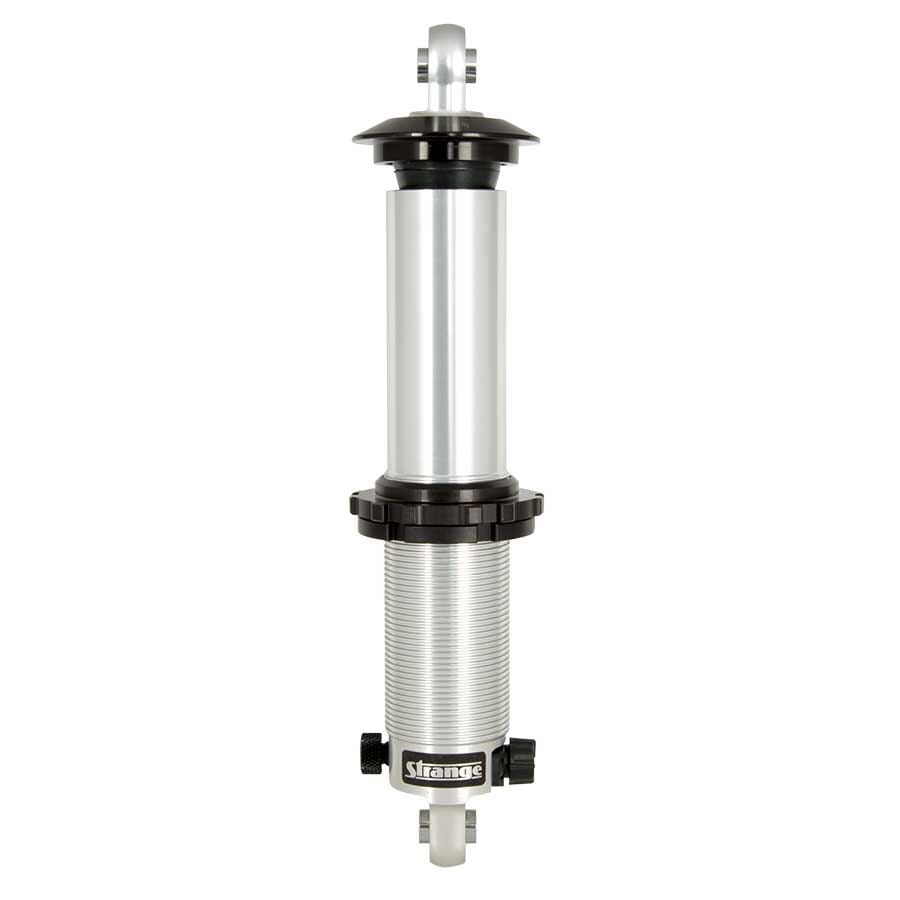

Part Number: S5007A Application Drag Race Vehicles Short Stroke 2.62″ thru 3.86″ – A-Arm Systems 3.86″ – Some Dragster 4-Link Systems Long Stroke 4.64″ thru 8.15″ – 4-Link & Ladder Bar Systems Description Double Adjustable Coil-Over Shock Sold as each Dimension A Stroke 6.52″ / Extended 19.15″ / Compressed 12.64″ With .563″ Bump Rubber Installed Stroke 5.957″ / Compressed 13.203″ Recommended Ride Height 15.25″ – 16.00″ Accepts 14″ x 2.5″ ID spring – Sold separately Features • Lightweight aluminum body • 10 extension & compression settings • Provides a wide range of control • Easily accessible independent external adjustment knobs • Allows quick adjustments for varying conditions • Coil-over design simplifies changes to ride height • 1.00″ wide high misalignment spherical rod ends • Ability to be rebuilt or revalved Options – .500″ or 1.500″ wide spherical bearings – Polyurethane bushings with steel sleeves * – Upper stud mount with rubber cushions * – Custom valving * * To Order Shock With These Options Please Call Not available for online orders Rear Shock Adjustments Ladder Bar Systems Below assumes rear chassis separation Extension Softer – Allows more downward force applied to the rear tires Stiffer – Enables quicker reaction times Compression Softer – Improves stability encountering bumps in the track Stiffer – Delays the return to normal ride height during launch 4-Link Systems Below assumes rear chassis compression Extension Softer – Improves stability encountering bumps in the track Stiffer – Delays the return to normal ride height during launch Compression Softer – Allows more downward force applied to the rear tires Stiffer – Enables quicker reaction times Rotating Knobs Clockwise Stiffens Valving Related Components Spring seat bearing kit………………. S1409 Spring seat adjuster wrench……… S1413 Double Adjustable Package………. S5007 Strange 6.52″ double adjustable coil-over shock: (Spring sold separately)
