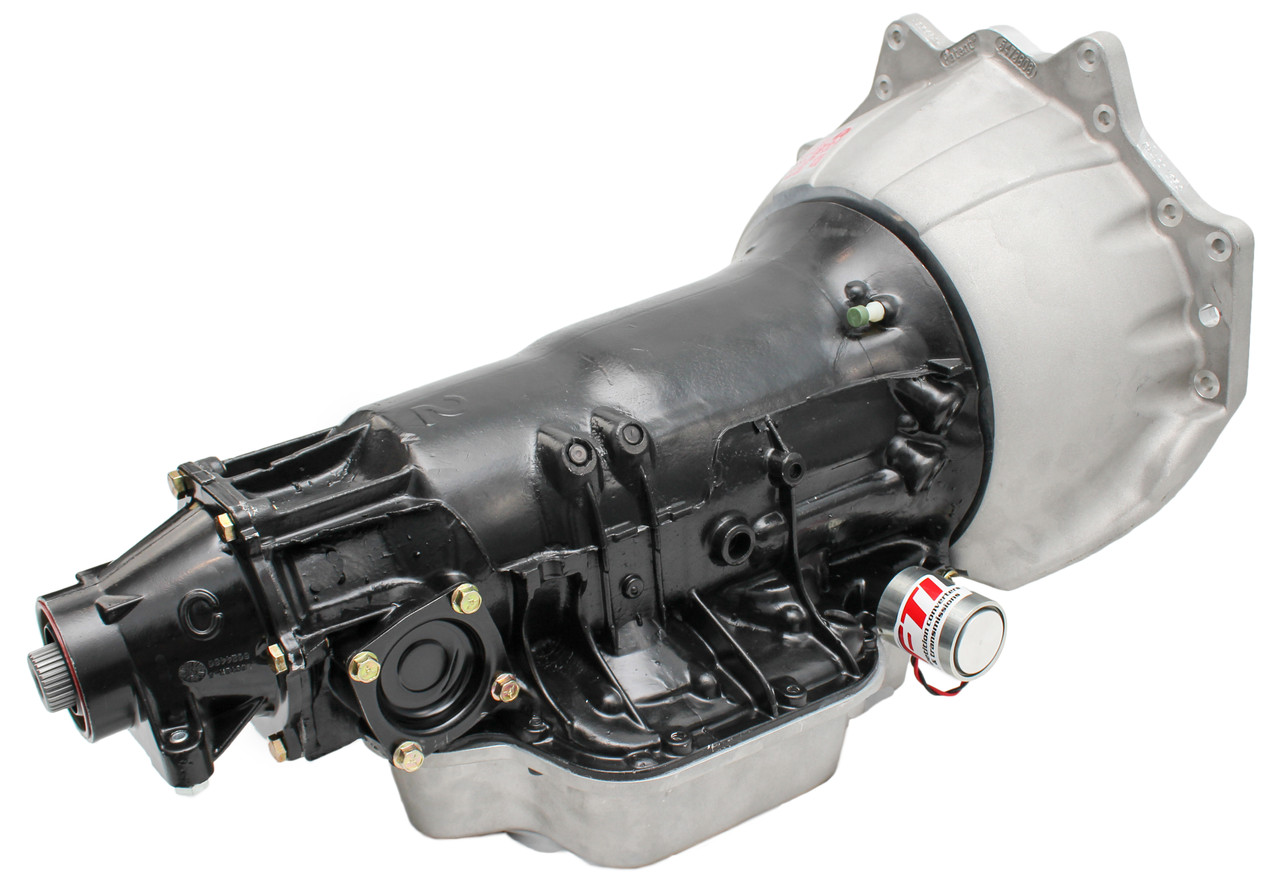

FTI Performance TH400
Turbo 400 Performance Racing Transmissions by FTI Performance – FTI Level 5 TH400 Performance Racing Transmissions are built with Unbeatable Performance & Durability. 800HP Rated TH400-52SPUB: Level 5 Turbo 400 Transmission, 2 Speed Conversion, Billet Transbrake Valvebody, SFI Certified Ultrabell housing TH400-52SPUBC: Level 5 Turbo 400 Transmission, 2 Speed Conversion, Billet Transbrake Valvebody, CUT for bolt on bellhousing NOTE: This is a 2 speed only TH400 Transmission. This transmission requires a Powerglide Shifter to properly operate. Shift Pattern: Forward, PRN21. Factory ratios are 1.48:1 1st gear, 1.00:1 2nd gear. Details: Rated for 2000HP Race Prepped Factory Case Billet Output Shaft Ermet Input Shaft Billet Intermediate Shaft Pro-Mod Aluminum Direct Drum 36 Element Oversized Sprague Billet aluminum Valve Body Billet Clutch Blocker for 2 Speed conversion FTI Sportsman Transbrake Reverse Shift Pattern Performance Red race Clutches Deep Aluminum Pan Rollerized Output Shaft(Case to output) Street/Strip 5 Clutch Intermediate Core Charge: A $350 core charge option has been included for this transmission. Once a core has been recieved and processed, a refund for the core charge will be issued.

Hazardous Materials
Class 3: Flammable Substances
Flammable Storage Cabinet Features
- 100Lt Cabinet Code SC100
- 2 doors, 1 shelf
- Under bench storage
- viventura patented automated/sequential closing and self-locking mechanisms – unique with only one moving part
- Double walled thermal barrier
- Alloy contact points – no spark risk
- Corner underside levelling bolts
- For added protection, additional undercoat etch is used before high gloss powder coat finish
- Key lock door handles and three-point latch locking
- Doors open 180 degrees for easy shelf removal
- Optional earthing point and cable provided
- Dual side vents
- Adjustable shelf height
- Built to comply with Australian Standards 1940
- Weight 100kg
- External measurements H800 x W1100 x D500
