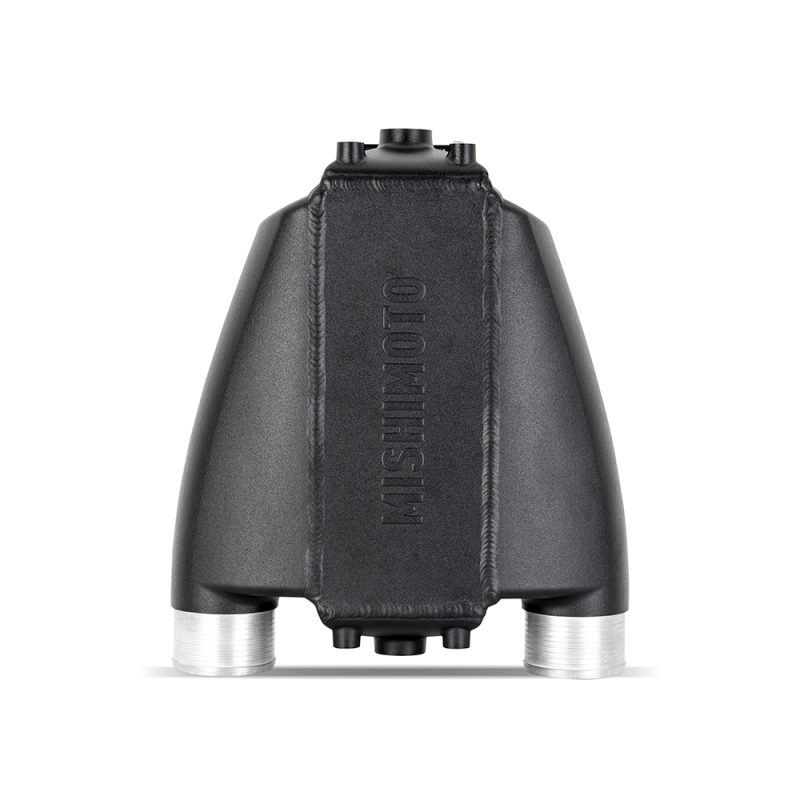

Single Pass Same Side Inlet/Outlet 500 HP PRODUCT SPECS WEIGHT 25lbs COATING Powder Coated TANK WALL THICKNESS 5mm MAX REC. PSI 100 OUTLET 500HP: 2.75″ 1000HP: 3.00″ 1500HP: 3.50″ INLET 500HP: 2.75″ 1000HP: 3.00″ 1500HP: 3.50″ CORE SIZE 500HP: 9.79″ X 3.93″ X 3.93″ 1000HP: 12.00″ X 4.92″ X 4.92″ 1500HP: 12.00″ X 5.90″ X 5.90″ CONSTRUCTION Bar-and-Plate OVERALL LENGTH Same Side Inlet/Outlet: 13.61″ Opposite Side Inlet/Outlet: 14.13″ OVERALL HEIGHT 500HP: 9.25″ 1000HP: 10.75″ 1500HP: 12.37″ OVERALL WIDTH 500HP: 3.93″ 1000HP: 4.92″ 1500HP: 5.90″ PRODUCT FEATURES Highly efficient air-to-water design delivers effective cooling in a compact package Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp Cast-aluminum end tanks are custom engineered to yield superb airflow and durability Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure CNC-machined ribbed airflow inlet/outlet produces secure coupler connections Sleek, subtle, and durable micro-wrinkle black powder coat finish -12ORB coolant ports provide leak-free line connections Includes robust 1/8” thick steel mounting bracket and hardware Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup Multiple core sizes to choose from to fit the needs of your project Mishimoto Lifetime Warranty
