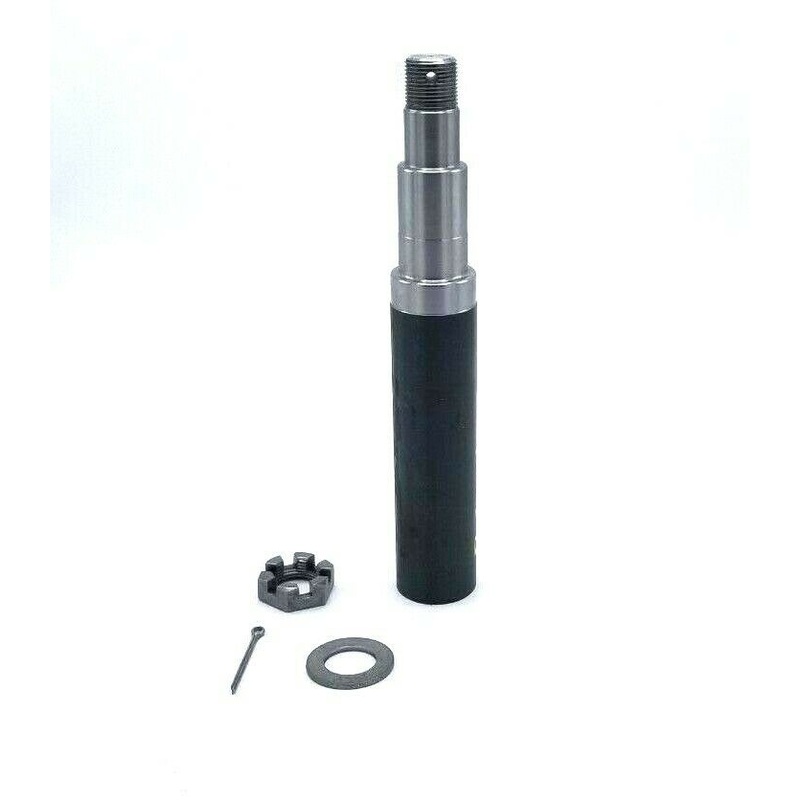

#84 Spindle 1.75″ x 6.5″ Round Spindle w/Nut, Washer, Pin – 3500# (R2061/284-KIT)
Description 1.75″ x 6.5″ Round#84Spindle Kit for Round Trailer AxlesPart#: R2061/284-KIT 11-3/8″ long overall, with a 1-3/4″ diameter at biggest end. Should fit tight inside 1-3/4″ axle tube mostly used on agricultural axles.This spindle has a 6-1/2″ long“tail shaft”, 1-3/4″ Diameter. Rated to 1750 pounds per wheel, 3500# axle. (Not Included)Uses standard 1.0625″ Outer Bearing, L446491 3/8″ Inner Bearing,L68149 1.75″ seal ID, 10-19 This auction is for ONE spindlekit including:1 (One) 3500# Round #84 Spindle w/ 1.75″ x 6.5″ Shaft Dimensions1 (One) Castle Nut1 (One) Washer1 (One) Cotter PinIf you have any questions, please contact us!
Hazardous Materials
Class 3: Flammable Substances
Flammable Storage Cabinet Features
- 100Lt Cabinet Code SC100
- 2 doors, 1 shelf
- Under bench storage
- viventura patented automated/sequential closing and self-locking mechanisms – unique with only one moving part
- Double walled thermal barrier
- Alloy contact points – no spark risk
- Corner underside levelling bolts
- For added protection, additional undercoat etch is used before high gloss powder coat finish
- Key lock door handles and three-point latch locking
- Doors open 180 degrees for easy shelf removal
- Optional earthing point and cable provided
- Dual side vents
- Adjustable shelf height
- Built to comply with Australian Standards 1940
- Weight 100kg
- External measurements H800 x W1100 x D500
