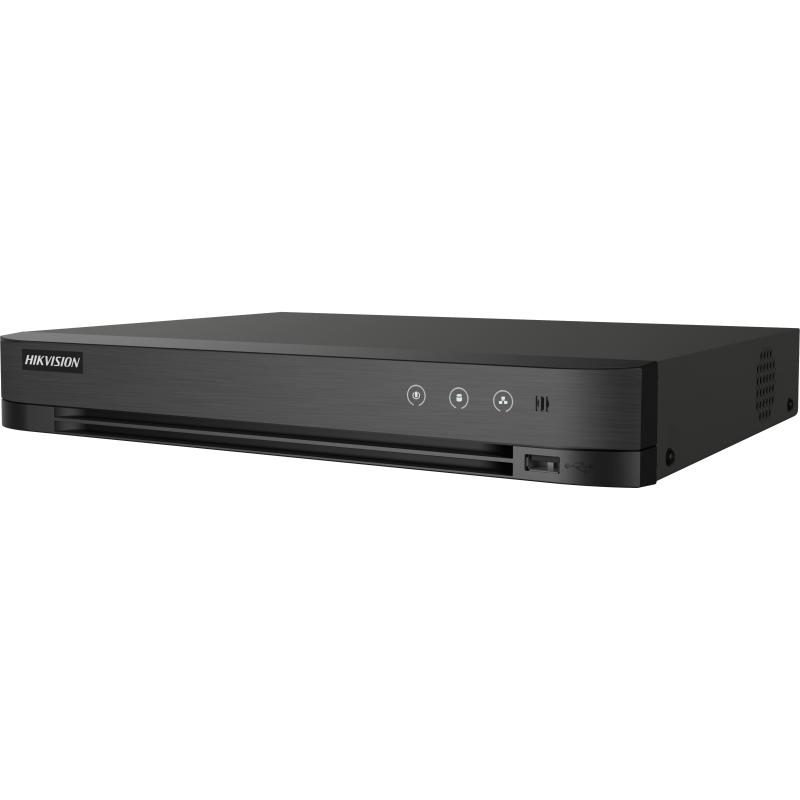

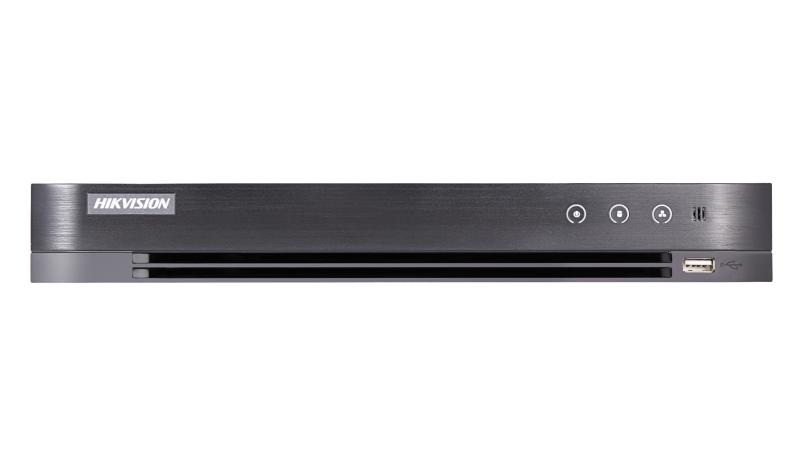

IDS-7232HQHI-M2/XT (32-ch 1080p 1U H.265 AcuSense DVR)

Product Details Product Summary The Hikvision IDS-7232HQHI-M2/XT is a 32-channel 1080p Turbo HD AcuSense DVR designed for advanced video surveillance. It supports multiple video formats and delivers AI-powered analytics including facial recognition and perimeter protection, offering scalable and intelligent video security with efficient storage. Key Features Supports 32 analog video inputs (HDTVI, AHD, CVI, CVBS) and up to 40 IP camera inputs (up to 6MP each) in enhanced IP mode Deep learning-based Motion Detection 2.0 with human and vehicle classification Supports AI perimeter protection on up to 8 analog channels for line crossing and area intrusion detection with false alarm filtering Facial recognition on up to 4 analog channels with a library of up to 16,000 face images Video input encoding up to 3K/5MP Lite at 12 fps codecs with H.265 Pro compression Up to 24-ch 1080p decoding capability, enabling efficient processing and playback 1U form factor with dual SATA HDD bays supporting up to 10TB each 4K HDMI output, VGA, and CVBS outputs for versatile display options Multi-channel audio input/output with 64 Kbps bitrate and G.711u compression Supports PTZ control (RS485/Coaxial) and intelligent playback functions Bandwidth allowance of up to 128 Mbps for network transmission Supports advanced remote access via Hik-Connect, Web Browser, iVMS-4200, and Hik-Central management software Operating temperature range: -10°C to 55°C Detailed Specifications Specification Details Model Number IDS-7232HQHI-M2/XT Analog Video Inputs 32 BNC (HDTVI/AHD/CVI/CVBS) IP Camera Inputs Up to 40 channels, max 6MP resolution each Max Recording Resolution 3K/5MP Lite @ 12 fps Video Compression H.265 Pro /H.265/H.264 /H.264 Image Processing Deep learning Motion Detection 2.0 with human/vehicle classification Perimeter Protection Available on 8 channels with false alarm filtering Facial Recognition Supports 4 analog channels Video Output 1 × 4K HDMI, 1 × VGA, 1 × CVBS Audio 1 channel RCA input/output, 64 Kbps, G.711u compression Storage 2 × SATA ports supporting up to 10TB HDD each Network Bandwidth Max 128 Mbps PTZ Control RS485 / Coaxial Remote Access Hik-Connect, Web, iVMS-4200, Hik-Central Power Supply DC 12 V, ≤ 40 W (without HDD) Operating Temperature -10°C to 55°C Dimension (W×D×H) 380 × 320 × 48 mm Weight ≤ 2.1 kg
