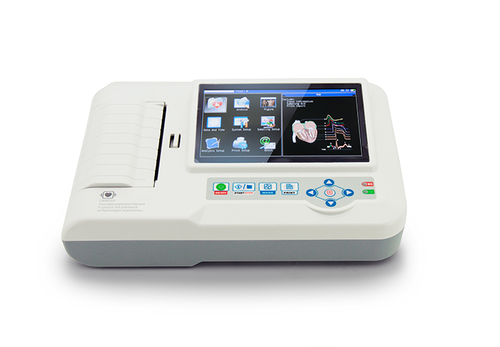

CONTEC ECG 600G Machine – 6 Channel

Description CONTEC ECG 600G Machine – 6 Channel CONTEC ECG 600G Machine Descriptions: Contec 600G 6 Channel ECG Machine is electrocardiographs that can concurrently collect and print 12-lead ECG waveforms using a thermal printing method. The ECG is a standard test for detecting irregular cardiac rhythms and determining the origin of chest symptoms. The electrical activity of the heart is recorded by an electrocardiogram. To contract the heart, the heart creates small electrical impulses that go through the heart muscle. The ECG machine can pick up on these impulses. It includes a powerful battery backup, which is why it can print for up to 90 minutes on a single charge. Up to 1000 ECG reports can be stored on the Contec 6 Channel ECG Machine. CONTEC ECG 600G Machine – 6 Channel Features Use a thermal printing system with a high resolution. There’s no need to make any changes. Frequency of recording: up to 150H The crisp and accurate ECG waveform is recorded in real time and constantly. Anti-baseline drift, AC and EMG interference are all included in the whole digital filter design. Sampling twelve leads ECG signal at the same time, analyzing 2× 6 1(rhythm lead), 2× 6, 3× 4, 3× 4 1(rhythm lead), 4× 3, 4× 3 1 (rhythm Lead), 6× 2, 6× 2 1 (rhythm lead) recording mode at the same time, and Reporting with multi-formats. Through the AC filter, baseline filter, and ECG filter of the ECG signals, a digital signal processor with 12 leads ECG simultaneous capture may produce higher quality ECG wave patterns. Simultaneous display of 3/6/12 lead ECG waveform as well as the condition of printing mode, sensitivity, speed, filter, and other parameters for easy interpretation. Automatically adjust the baseline. Get a high-quality ECG waveform by using digital signal processing techniques. Auto measurement, analysis, and diagnosis functions for routine ECG parameters. On one screen, a 3/6/12 lead ECG, “Lead off,” and “Lack of paper” are displayed. More than 1000 cases can be stored. Interface and report in several languages. Both AC and DC power is available. This device has a lithium polymer rechargeable battery built in. Under the best DC condition, it can standby for 4 hours, print 150 pieces of ECG waveform, and print for 90 minutes continuously. To meet the need for patient visits and physical examinations. It has huge capacity built-in storage and can store more than 1000 Cases, making it simple for doctors to review and compile statistics. The preserved ECG waveform, auto-Analysis and auto-interpretation of ECG waveform parameter, and auto-Interpretation conclusion are all shown in the review mode. Chinese, English, Italian, and Turkish operational interfaces are supported, and reports can be printed in Chinese, English, Italian, or Turkish. Performance: Input mode: floating and defibrillation protection Frequency response: 0.05Hz ~ 150Hz (-3dB~ 0.4dB) CMRR: >60dB, >100dB(add filter) Time constant:≥ 3.2s Patient leak current: <10µA Calibration voltage: 1 mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10 mm/mV±2% Noise level: <15 µVp-p Input circuit current: ≤50 nA Input impedance: ≥50 MΩ Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof applied part Thermal printing system (recording mode) Auto record: set the record according to the auto record format and mode, switching leads automatically, measuring, and analysing. Set the record according to the rhythm record format and mode, and it will automatically measure and analyse it. Set the record according to the record format and manually switch the leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) S(V1) Paper size: 80mm(W) × 20mm(L) Sampling frequency: 1000 Hz ECG interference filter: 25 Hz/35 Hz (-3dB) Power frequency filter: AC 50 Hz/60 Hz (-20dB) Auto: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s, ±5% Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s, ±5%   Power Supply:   Safety Class: Class I, Type CF applied part. There is a defibrillation circuit. Power supply: AC: 100 V~240 V, 50/60 Hz DC: 7.4 V, 3700 mAh rechargeable lithium battery
