EPON OLT 8port Management OEM Support FTTH

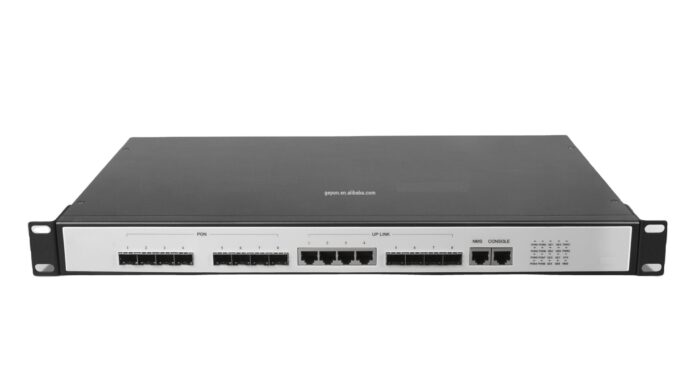

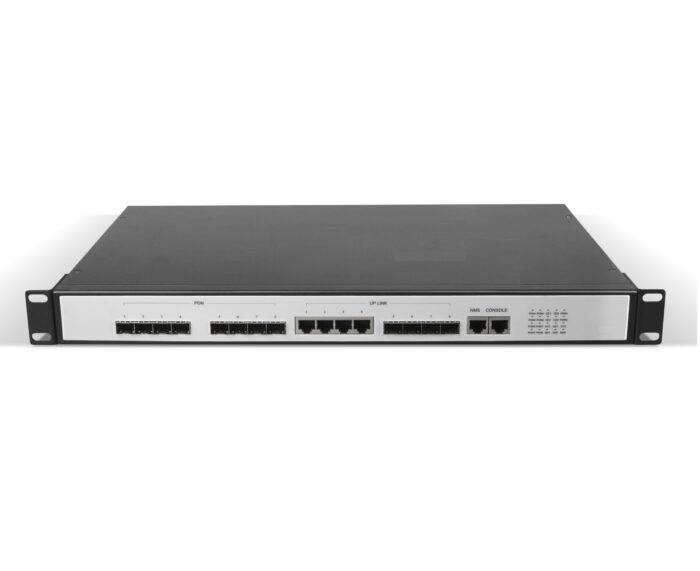

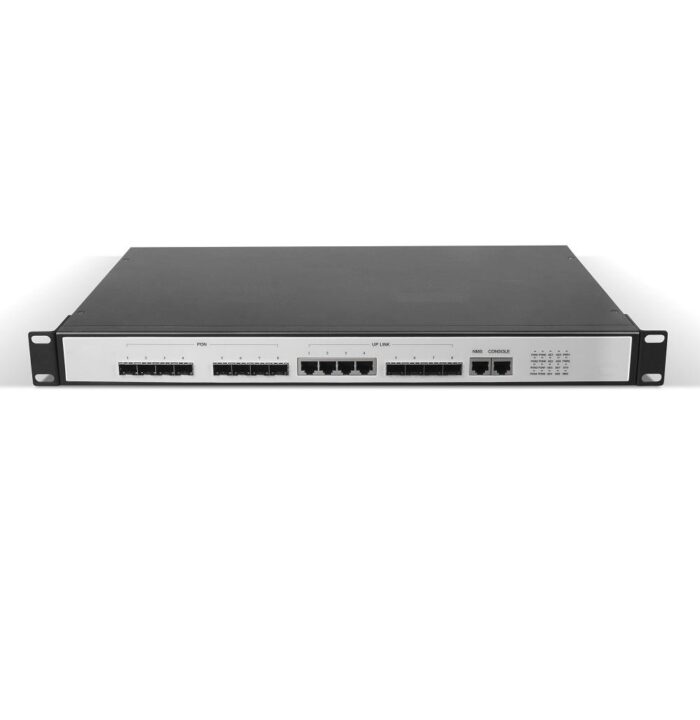

EPON OLT 8port Description: As a professional manufacturer of 4 Core Terminal Box, Adss Optical Fiber Cable, Mpo Patch Cord mm equipment, EPON OLT, our company not only has a variety of advanced equipment, but also has a group of technical personnel and management personnel specializing in market research, new product development. We always make breakthroughs with an enterprising spirit, persistently exploring the technological frontier of products. The quality inspection, warehouse management and sales person in charge will check the quantity and quality of the ordered products carefully. EPON OLT 8port: E9004-08-B/B complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers. EPON OLT 8port E9004-08-B/B supports the Asymmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users. Its supports maximum splitter ratio 1:128, and its support of different hybrid ONU networks minimize the carrier’s investment. E9004 based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out. Features: ● GPON: Abiding by ITU-T G.984/G.988, BDCOM GP3600 series OLT meets relevant requirements of GPON OLT regulated in Network Access Technical Requirements and China Telecom GPON Technical Requirements CTC2.0; ● System Capacity: supports 8 GPON ports. ● Uplink Interface: 4 gigabit SFP ports, 4 gigabit combo ports and 4 10GE SFP ports. ● Dimensions: 1U, occupies a small space. ● Environmental Protection: low power consumption and low operating cost. ● Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber; ● Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment. Technical Parameters Parameter Specification System Capacity Maximum coupling ratio:1:128 Backplane bandwidth:205G MAC table capacity: 64K Interface PON 8 Uplink interface 8 GE ports (4 gigabit SFP ports, 4 gigabit TX/SFP combo ports) 4 10GE SFP ports Attributes of the PON Interface The transmission rate with downlink 2.5Gbps/uplink 1.25Gbps Class B  and Class C  GPON module Security: ONU authentication mechanism Standards ITU-T G.984/G.988,IEEE 802.1D, Spanning Tree,IEEE 802.1Q, VLAN,IEEE 802.1w, RSTP IEEE 802.3ad physical link static/dynamic aggregation (LACP) Ethernet – II QoS Backpressure flow control (half duplex) IEEE 802.3x flow control (full duplex), IEEE 802.1p, CoS WRR, SP and FIFO queue schedule Limiting the uplink/downlink rate based on each ONU DBA and SLA VLAN Port-based VLAN, 4K VLAN QinQ and flexible QinQ Multicast L2 Multicast,IGMP Snooping,MLD Snooping Reliability Unidirectional Link Detection (UDLD) Hot swap of the GPON optical module Optical path protection of GPON (type B/C, hand-in-hand) Abnormal luminescence ONU detection such as long luminescence Network Security Limiting the maximum number of users on each port Port isolation,Packet storm control Flow-based ACL access control function Transmission data encryption on the PON interface Configuration Management Various management modes such as CLI, SNMP and TELNET Conducting software upgrade through TFTP Debug output Physical Characteristics Dimensions mm (W×D×H): 442.5x304x 44 Installation: standard 19-inch rack-mounted Weight:5.25Kg Environment Operating environment: 0℃-45℃; 10%-85% non-condensing Storage environment: -40℃-80℃; 5%-95% non-condensing Power Supply Input voltage: AC90 ~ 240V, DC 36 ~ 72V dual-power input, DC/AC power supply and hot-swap   Package Packaging Size 175mm (L) * 442mm(W) * 44mm (D) Weight 2.5kg Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.   For more: Click here
