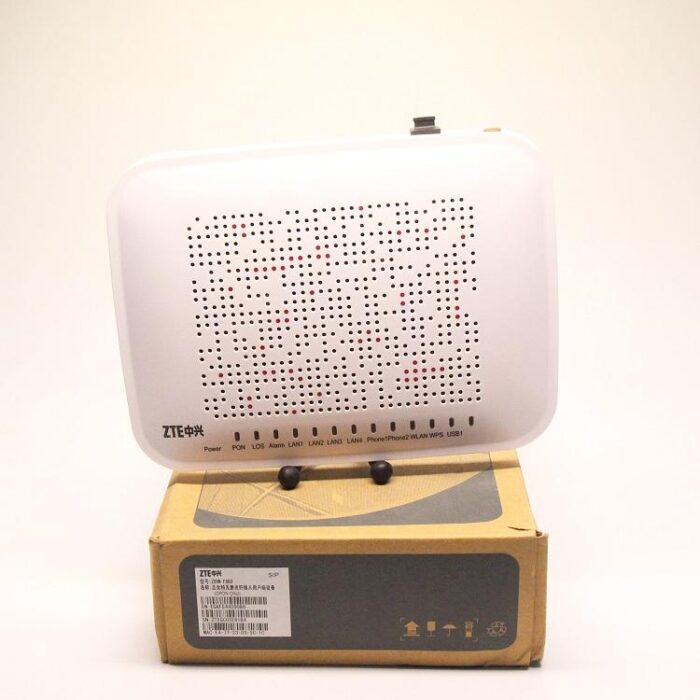

F660 3.0 High Quality Multifunctional WIFI ONU

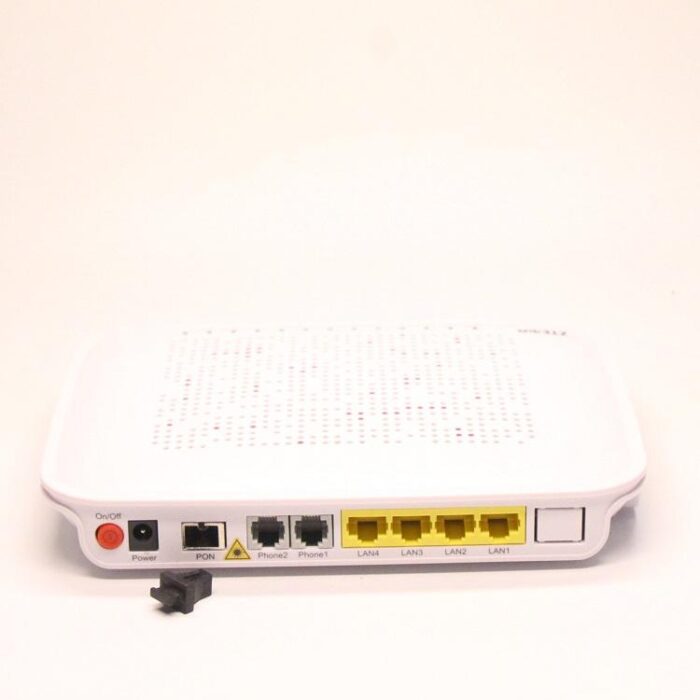

The F660 is a high-end home gateway in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F660 V6.0 provides 1 POT ports, 1GE and 3FE auto-adapting Ethernet ports, one USB port, and Wi-Fi port. The F660 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. ZTE F660 V5/V5.2 Specification Model F660 V5/V5.2 Optical port 1 x GPON interface Transmission Distance 0-20KM Transmit rate 2.488Gbps downstream; 1.244Gbps upstream User-Network Interface 1GE 3FE port 1 x Wi-Fi interface 1 x USB host interface 1 x POTS interfaces Wavelength Receiving: 1480~1500 nm Transmitting: 1290~1330 nm Receiving Sensitivity -28dBm Transmitting Optical Power 0.5~5dBm Power consumption <10W Dimensions 220mm(W) x 44mm(H) x 160mm(D) Working temperature: 0oC ~ 40oC Working humidity 5% ~ 95% Weight 380G Power supply 12V DC Product Features Ultra-wide: one deployment, continuous upgrade of network capacity Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs. Simplified: energy saving and land saving, simple operation and maintenance The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%. The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network operation and maintenance expenses can be reduced by more than 60%. Convergence: One optical fiber carries all services A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services. Security: Provide multiple security protection mechanisms The POL network effectively avoids electromagnetic interference, electromagnetic leakage and other problems, and supports AES128 encryption to ensure the safety of data optical fiber transmission. POL equipment supports MAC binding, 802.1x authentication, user isolation, etc., broadcast suppression, and anti-DOS attacks effectively prevent illegal user access and other user attacks. ZTE F660 V5/V5.2 FTTH and More Models F612-V60 ZXHN F612 60  Onu-F612 ZTE ZXHN f612 V30 Zte Zxhn F460  ZTE F643 v6 ZTE F412 V6 ZTE F477 V2.0
