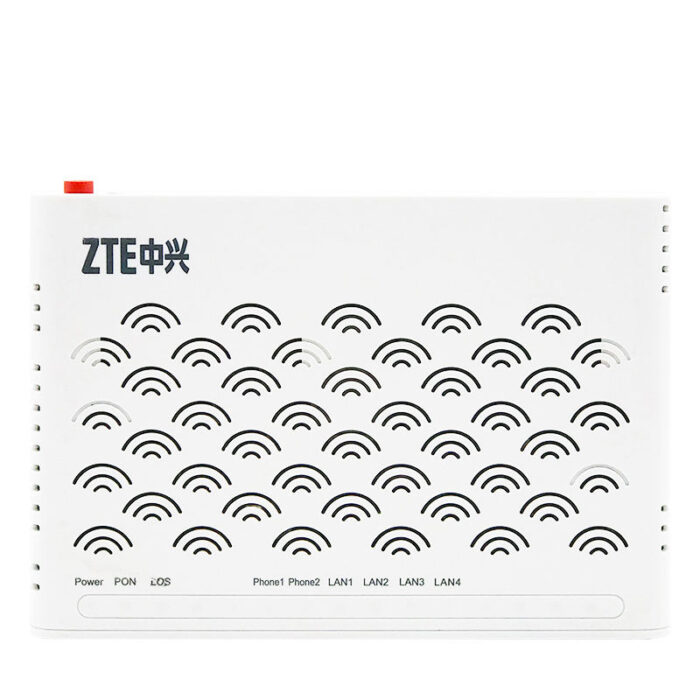

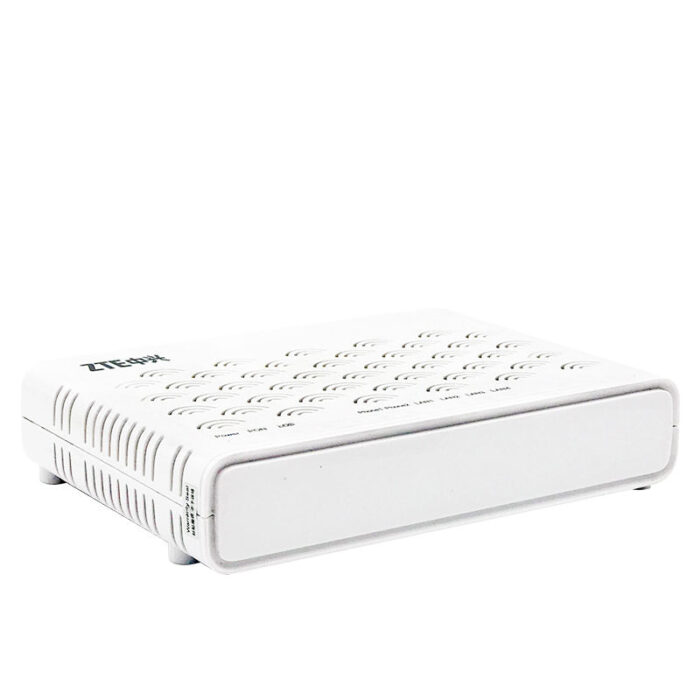

F620 ONU V5 V5.2 4FE 2TEL Brand New ZTE ONT

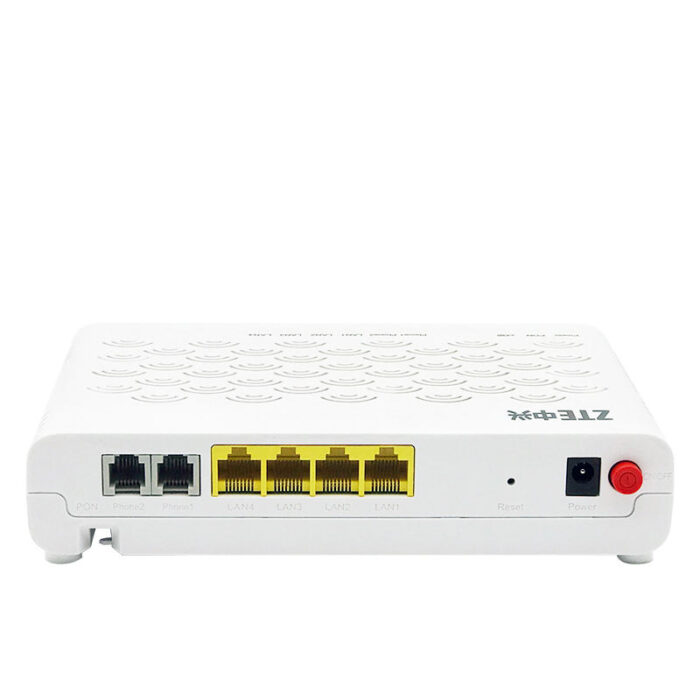

ZTE F620 ONU V5 V5.2 The ZTE F620 ONU V5 V5.2  terminal provides a very fast and efficient broadband Internet network using FTTH. It is perfect for voice calls (VoIP), video streaming (IPTV) and Internet browsing. Additionally, the F620 V5 allows you to connect two phones via RJ-11 connectors. High-speed Internet access The ZTE F620 V5 subscriber terminal provides access to a high-speed broadband network via a GPON connector, which allows stable and efficient operation of the aforementioned applications. Support for two phones Thanks to the two RJ-11 connectors used, it is possible to connect two phones separately, for example, one for private and one for business purposes. Ethernet connectors Four built-in Fast Ethernet ports in F620 V5 allow you to connect several devices without additional bridges and operate with 100 Mb/s transfers. Specification of ZTE F620 ONU V5 V5.2 GPON interface Optical port 1 x GPON interface (SC / APC) Transmission range 20 km Transmission speed Download: 2,488 Gb/s Upload: 1,244 Gb/s User interface 4 x 10/100/1000Base-T, half/full duplex, automatic MDI/MDIX, automatic negotiation 2 x POTS (VoIP) interface Optical module Wavelength Reception: 1480-1500 nm Transmission: 1290-1330 nm Receiver sensitivity -28 dBm Transmitter optical power 0.5 to 5 dBm Physical parameters Current consumption 7W Dimensions 180 x 38 x 127 mm Working conditions Temperature: 0°C to 40°C Humidity: 5% to 40% Weight 260 g Power supply 12 V DC Installation Standing / To the wall Spare battery 3 AH / 6 AH (optional) Main features Supported services VoIP Internet IPTV GPON 8 x T-CONT 32 x GEM port VLAN 802.1Q 802.1P 802.1ad MAC address table 1K Functions L3 DHCP Client/Server DNS Client NAT IPv6 Dual stack DS-Lite VoIP SIP/H.248 G.711/G.722/G.729 T.30/T.38 Multicast IGMP v1/v2 Snooping/Proxy MLD v1 Snooping Multicast group per user port 256 QoS Flow classification based on physical movement MAC address VLAN ID VLAN priority level IP address SP/WRR/SP WRR Management Local Web OMCI TR069
